Deep Decorative Relief
Pronounced patterns for premium panels, sheets and packaging.
Matched Registered Embossing

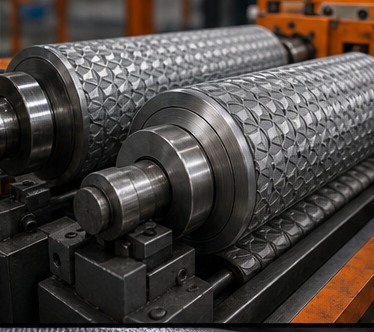

Male-Female Embossing Rollers
Male-female roller sets use complementary raised and recessed geometry to form deeper, sharply defined three-dimensional patterns. Accurate registration and controlled clearance are essential.
Request Technical Discussion +MatchedRoller Pair
ControlledClearance
DeepRelief Forming
RegisteredPattern Repeat
Manufacturing
Developed for deep relief, crisp forming and repeatable matched-pattern registration.
Male-female roller sets use complementary raised and recessed geometry to form deeper, sharply defined three-dimensional patterns. Accurate registration and controlled clearance are essential.
- Application-specific dimensional engineering
- Surface specification developed for production conditions
- Quality inspection before protective packing
Key Applications
Where This Solution Creates Value
Each application has different material behavior, operating conditions and surface expectations. The roller specification is developed accordingly.
Formed Metal & Foil
Matched geometry for controlled deformation without random crushing.
Technical Patterns
Registered channels, ribs and functional three-dimensional structures.
Engineering Benefits
Designed Around the Real Production Process
Defined relief
Complementary geometry creates stronger three-dimensional definition than single-roll embossing.
Accurate registration
Timing and phase control keep male and female patterns correctly aligned.
Material-aware clearance
Gap is engineered around material thickness, compression and forming limits.
Set inspection
Both rollers are checked together for mesh, contact, clearance and pattern repeat.
Technical Details
Specification Inputs and Quality Controls
Final dimensions and materials are confirmed against the approved drawing and operating data.
| Set configuration | Matched male and female engraved roller pair |
|---|---|
| Critical inputs | Material thickness, compression, relief depth and line tension |
| Drive requirement | Timing gears or synchronized drive arrangement |
| Engineering focus | Registration, phase, clearance and deflection |
| Inspection | Pair meshing, contact pattern, runout and repeat alignment |
Development Process
From Requirement to Production-Ready Roller
Requirement study
We review the material, machine arrangement and performance target for this roller.
Engineering
Roll geometry, surface specification and process parameters are defined for male-female embossing rollers.
Manufacturing
Machining, engraving or polishing is completed under dimensional process control.
Inspection & dispatch
The finished roller is checked, protected and prepared for domestic or export delivery.
Frequently Asked Questions
Technical Questions About Male-Female Embossing Rollers
Why use a male-female set instead of one engraved roller?
A matched pair creates deeper and more controlled relief while supporting both sides of the material.
How is roller timing maintained?
Timing gears, keyed positions or synchronized drives maintain pattern phase according to the machine design.
Can a pattern be scaled from a sample?
Yes, after evaluating repeat dimensions, material behavior and forming depth.
Planning a Male-Female Embossing Rollers requirement?
Share the material, working width, roller drawing and desired surface result for a technical review.
